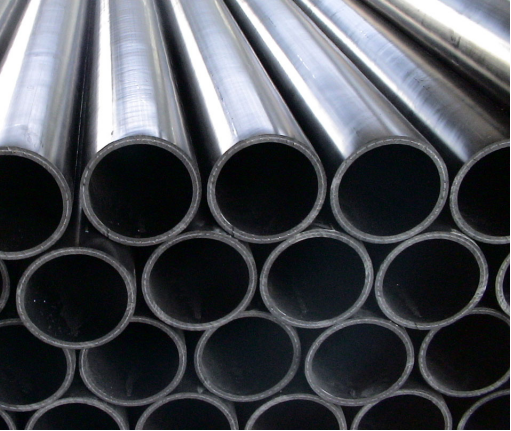

PE Steel-Mesh Reinforced Water Pipe

Product Introduction

HDPE steel-reinforced composite water supply pipes feature a core structure made of high-ring-stiffness 60Si2Mn spring steel, fully integrated with PE (polyethylene) material. This composite design combines the high ring stiffness of steel pipes with the flexibility of PE pipes. The pipes are manufactured through a single-molding process and utilize electrofusion joints, which ensure leak resistance, a smooth inner surface, low installation costs, superior quality, and excellent cost-effectiveness.

Product Features

1. Excellent creep resistance and high long-term mechanical strength.

2. Good temperature resistance.

3. High rigidity and impact resistance, combined with dimensional stability and moderate flexibility—a perfect balance of strength and pliability.

4. Low coefficient of thermal expansion; resistant to rapid crack propagation.

5. Uniform and reliable integration of steel and plastic; dual-sided corrosion protection; inherent traceability; flexible adjustment of structural properties.

6. Specialized electrofusion fittings available in a wide variety, ensuring fast and reliable installation.

Executive Standard

CJ/T 189–2007

Common Specifications

DN50, DN63, DN75, DN90, DN110, DN160, DN200, DN225, DN250, DN315, DN400, DN450, DN500, DN630

Scope of Application

These steel-reinforced PE water supply pipes are suitable for various pressurized water transport projects, including:

Municipal water supply mains

Urban tap water infrastructure

Rural drinking water safety projects

Water supply networks for residential communities, industrial parks, schools, and hospitals

Secondary pressurized water supply systems

Long-distance water transmission pipelines

High-pressure pipe sections at pump station outlets

Industrial water transport

Agricultural irrigation main networks

Firefighting water supply systems

Water transport systems for mining areas, oilfields, and chemical facilities
